JWF K520LS

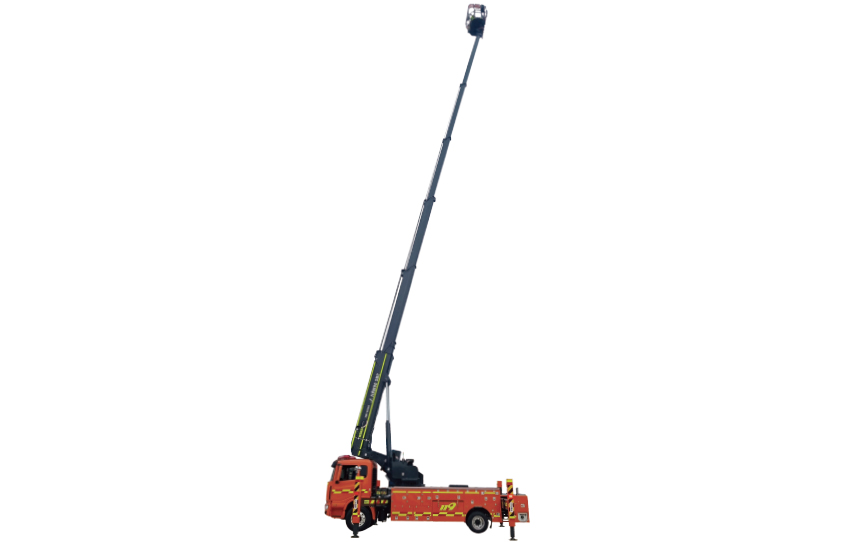

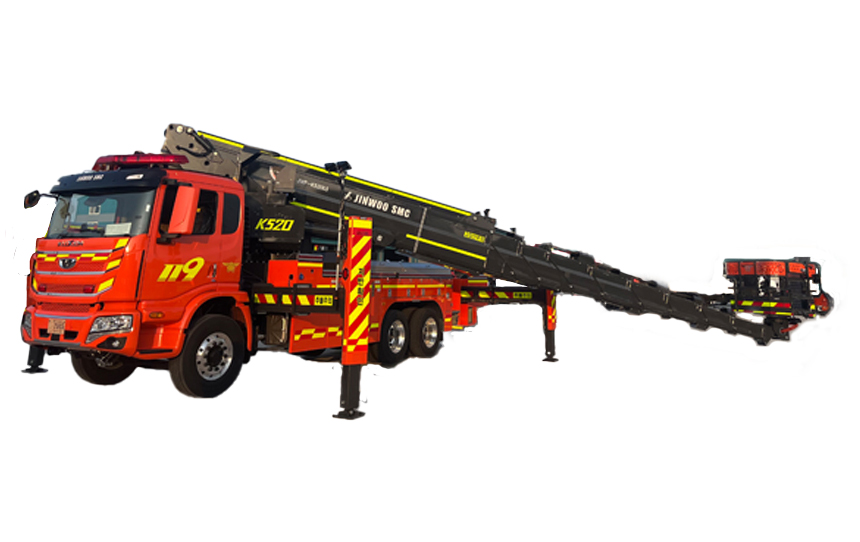

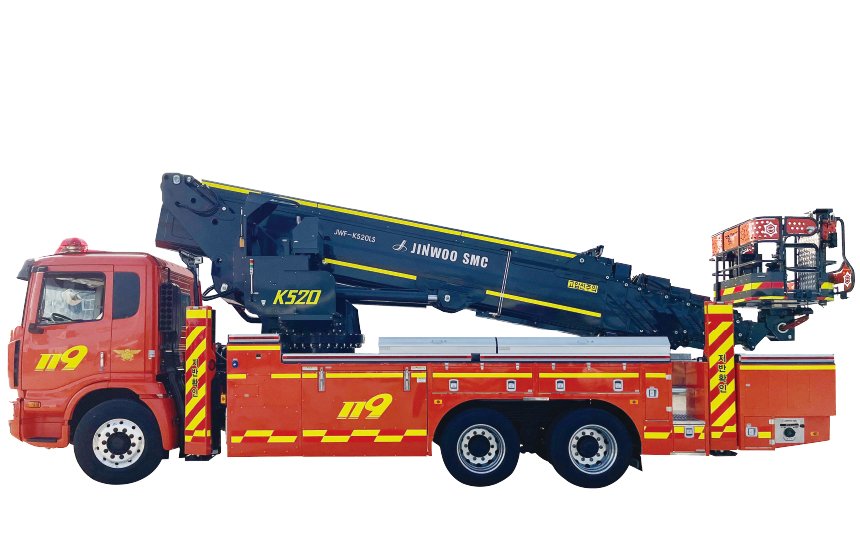

Firefighting aerial ladder vehicle Telescopic boom type(52M)
  • Mounted on compact 19ton GVW vehicle, having only 10.2m travel length; allows swift entry to constrained narrow space thereby enabling rapid versatile effective rescue operations.
  • Outriggers are provided with cylinders for both Jacks and Slides; which are fully reinforced with protective covers thereby blocking external impacts and reducing vibrations.
  • Versatile Operations possible in this range of Firefighter, capable of 360º slewing with widest radius wrt height.
  • Advanced self-defense and safety-sensors based ergonomic system incorporated to ensure rapid response to different Rescue and Firefighting operations in complex, constrained work spaces having various blind spots.

Main specifications

Contents Firefighting aerial ladder vehicle Telescopic boom type(52M)
Overall length 10,150mm
Overall height 4,000mm
Overall width 2,495mm
Vehicle gross weight Within 28,000kg
Rescue Platform capacity 400kg
Working height 52m
automatic water turret 1,000 GPM
Rescue Platform’s rotation 360˚ (limit)
Boom 9 step interlocked
Turn table’s rotation 360˚ (continuous)
Outrigger type extension method: 2 step extension
Outrigge’s extention width 6,550mm
Control system Wired/wireless remote control

The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
