Fire truck
Water tank container for fire suppression of electric cars (K925C)
List
Product
category
Fire truck

JWF K925C

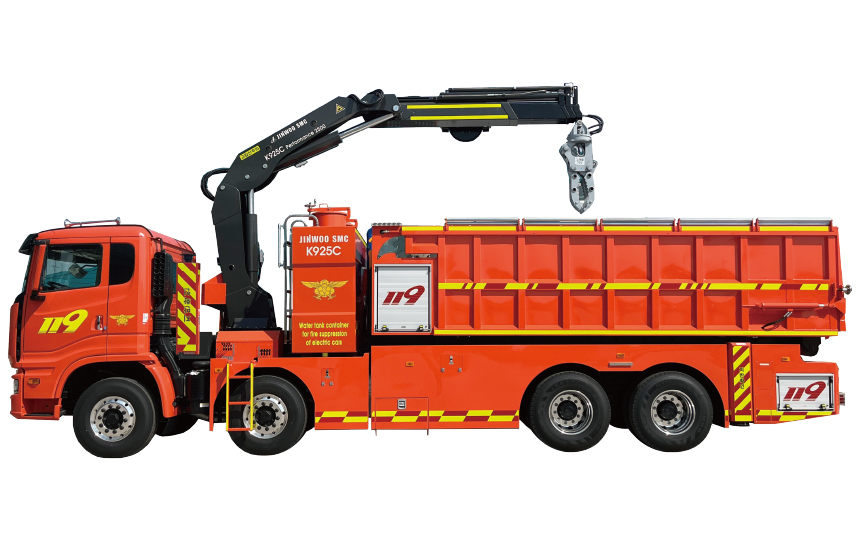

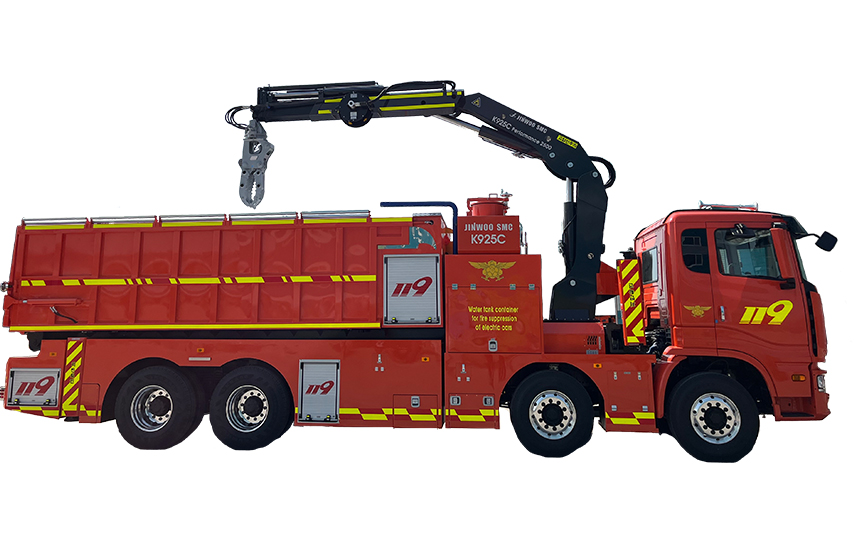

Water tank container for fire suppression of electric cars(JWF K925C)

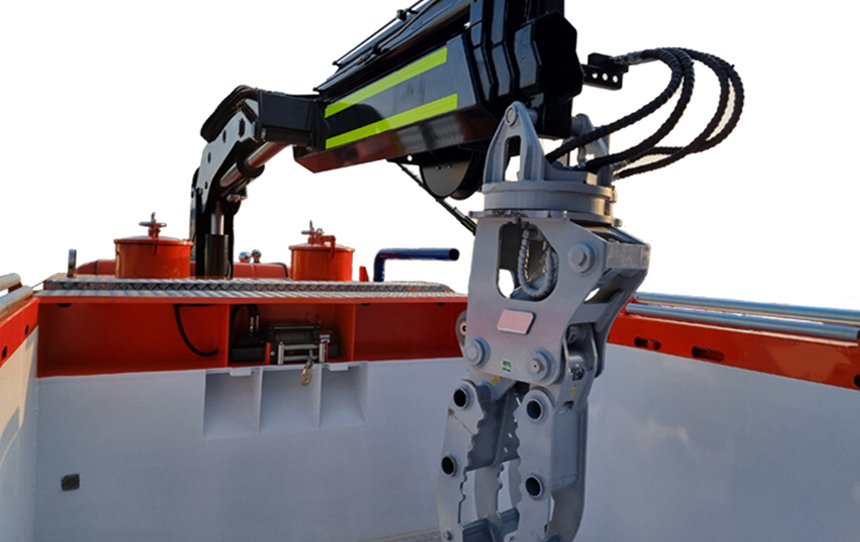

  • Embodied with compact folded-form Knuckle Crane possessing strong Traction Force, enables lifting of fire-accident prone Electric Vehicles(EV) without restrictions from road or any accident area conditions.
  • Knuckle Crane’s turntable operates smoothly allowing easier and faster operations in limited and constrained spaces.
  • Efficiently proactively prevents re-ignition of batteries due to Thermal runaway by infusing external water into the tilt-able type container to sufficiently submerge the battery of the fire-accident prone Electric Vehicles.

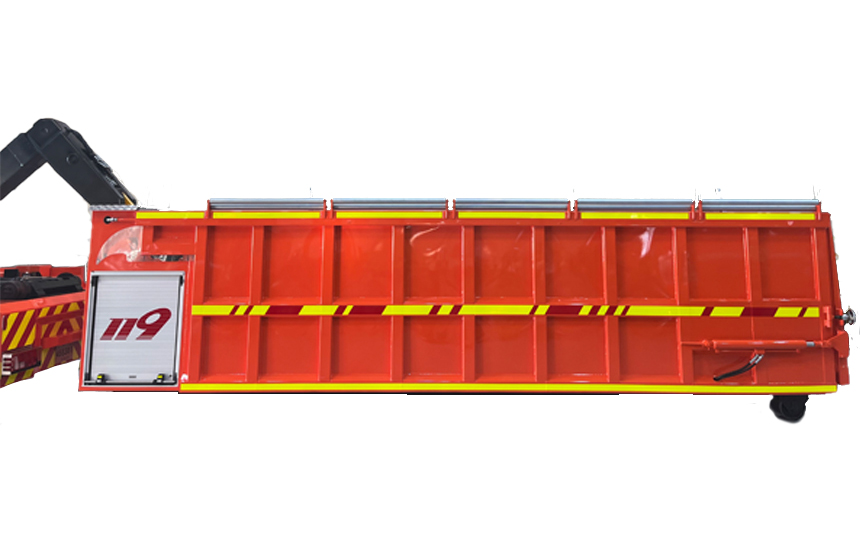

  • Water-filling container can be rapidly and easily replaced as-when-required, thereby spontaneously respond to multiple EV Fire accidents.

Main specifications

Contents Water tank container for fire suppression of electric cars
Overall length 11,550mm
Overall height 3,950mm
Overall width 2,490mm
Vehicle gross weight 36,200kg
Engine output 480ps / 1,900rpm
Drive Type 8x4
Water tank 3,000ℓ
Outrigger H-H Type
Knuckle Crane Lifting capacity: 2,500kg or more
working radius: 9m or more
Container to fill Water Winch pulling force: 3,000kg or more
Container specifications : 6,000L * 2,300W * 1,400H
Container watertightness : Less than 1ℓ /Hour
Automatic opening and closing of rear gate
Control system Wired/wireless remote control

The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
