| Contents | Unit | JINWOO320AH | JINWOO320AD | Remarks | |
|---|---|---|---|---|---|
| Permissible Mounting Vehicle | Ton | Min. 9.0 GVW | 4x2 | ||
| Max. Working Load | Payload | Kg | 400 (OPTIONAL 300Kgs Crane Winch) | Including 3 persons | |
| Product’s Dimension (with Vehicle) |
Length | mm | 6,785 | 7,100 | Transport dimension |
| Height | mm | 3,070 | 3,110 | ||
| Width | mm | 2,150 | 2,360 | ||

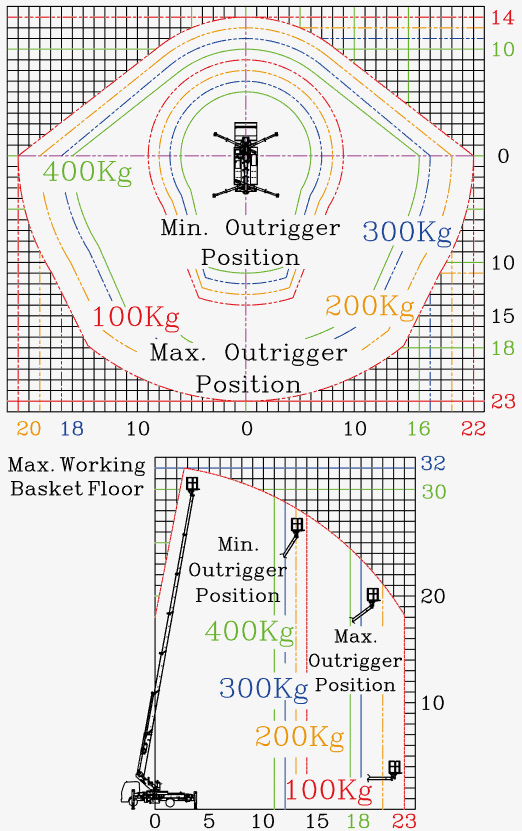

| Working Area | Max. Height | m | 32 | Operator height | |
| Max. Outreach | m/kg | Rear : 18 - 400 / 23 - 100 Left/Right : 16 - 400 / 22 - 100 Front : 10 - 400 / 14 - 100 |
Outrigger Max. extended | ||
| Work Platform | Dimension (L x D x H) | mm | 1,830 * 500 *1,100 | Basic | |
| 3,230 * 1,030 *1,100 | Extended | ||||
| Rotation Angle | deg. | 360deg. Continuous | ±720 | ||
| Boom | Type | HexaDecagon | 16 edges | ||
| Number of Booms | 7 | Telescopic | |||

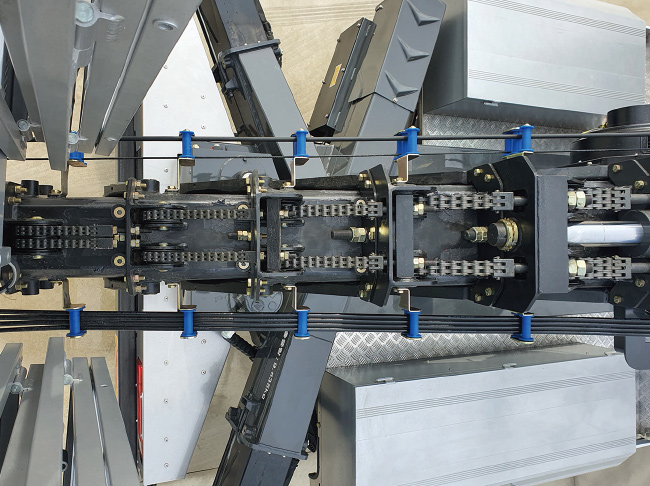

| Extension | Hydraulic Cylinders, Chains | Single stage | |||
| Turntable Rotation | Type | Slewing Bearing with Hydraulic Reduction Gears | Minimal backlash | ||
| Rotation Angle | deg. | 350 ( ±175 ) | Auto Cut-off | ||
| Hydraulic Pump Drive Type | Engine | P.T.O | Electric type | ||

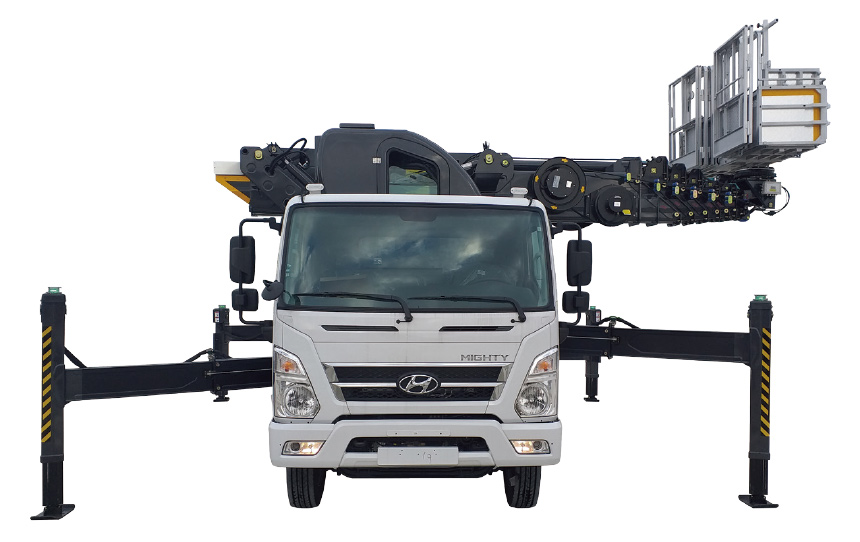

| Outrigger | Width | mm | Front : 5,870 Rear : 6,035 |
Front : 5,980 Rear : 6,070 |
Different positioning |
| Extension | Hydraulic Cylinder, Wire | ||||
| Type | X - A | Patented | |||
| Operations and Controls | Type | Hydraulic Levers | All controls | ||
| Remote control | Portable Radio Wireless | Upper controls only | |||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
