Aerial Elevating Work Platform

JINWOO 290

VERY EASY TO WORK IN THE NARROW SPACE
  • Compact sized with least protrusion(35cms) of Boom, avoiding in-coming vehicles traffic accidents.
  • High Tensile, special treated Steel Hexadecagon 7 stage Boom (16 edges).
  • Most compact sized for complex working space in Urban and mega cities.

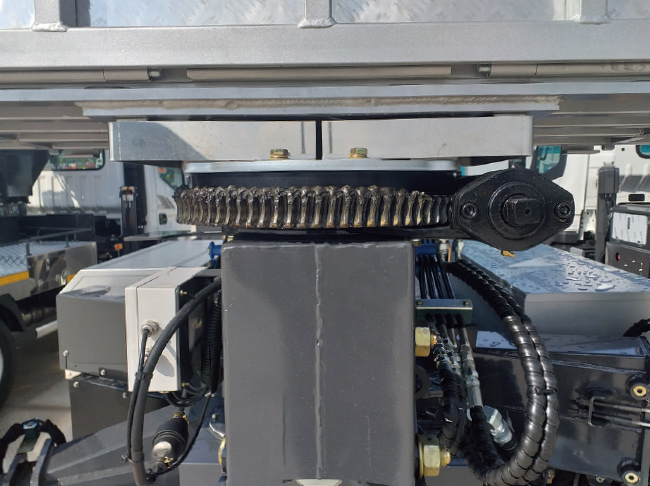

  • Minimalized Platform moment with large size Ring Gear below Work Platform.
  • Fully Programmed Auto control system based on multi positioning of Outriggers.

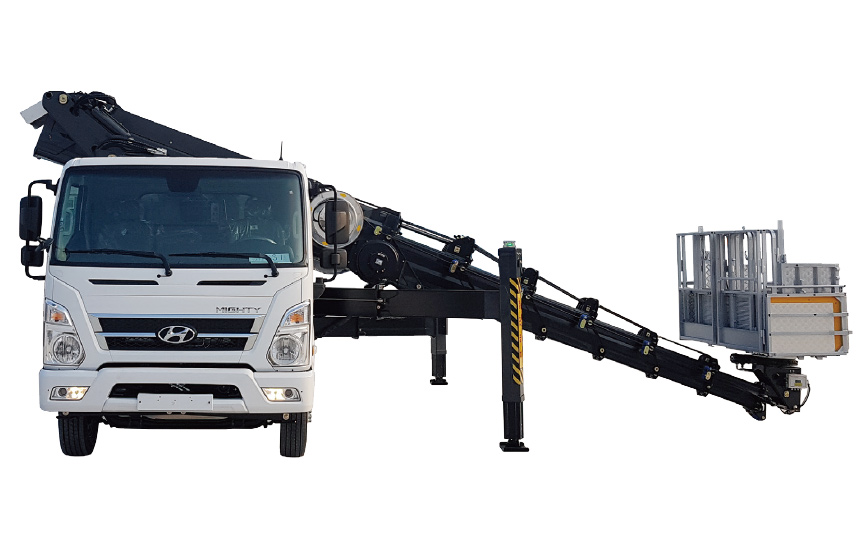

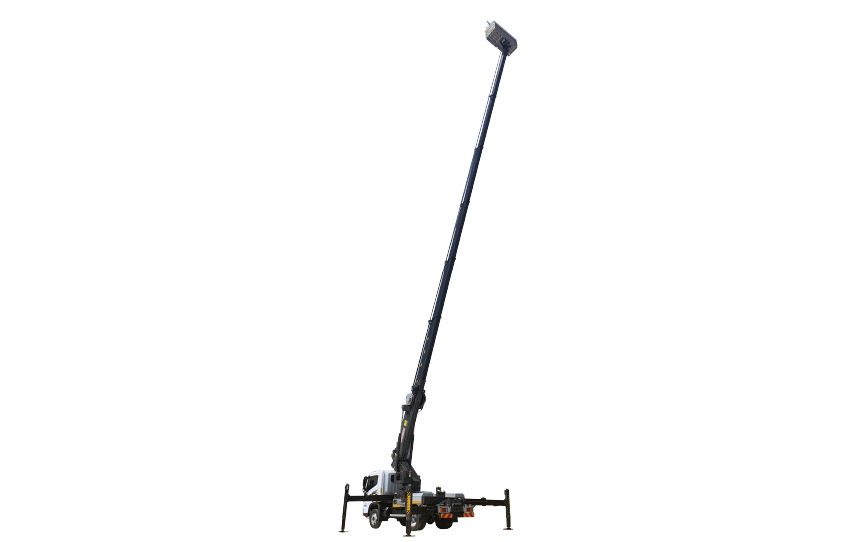

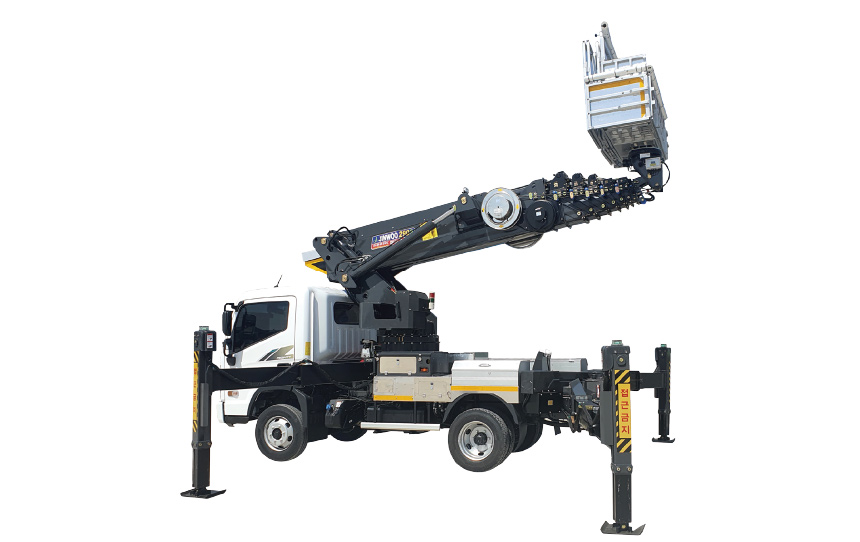

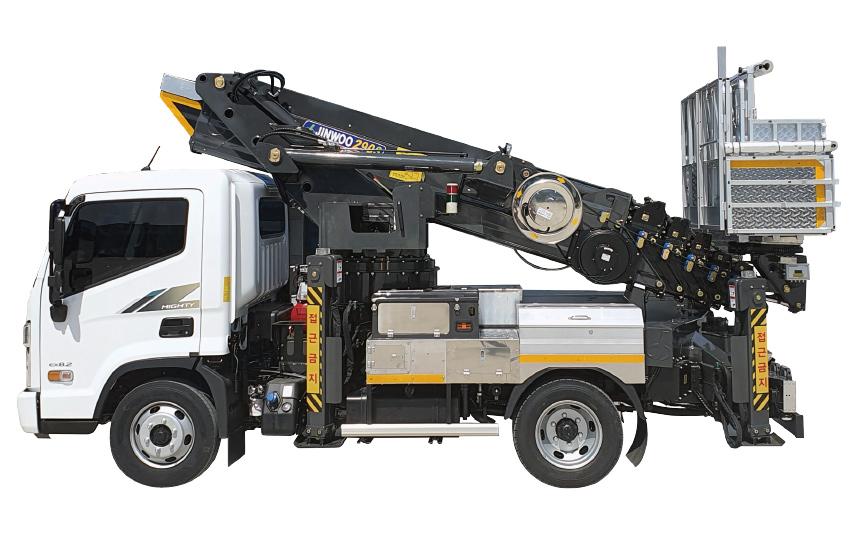

Gallery

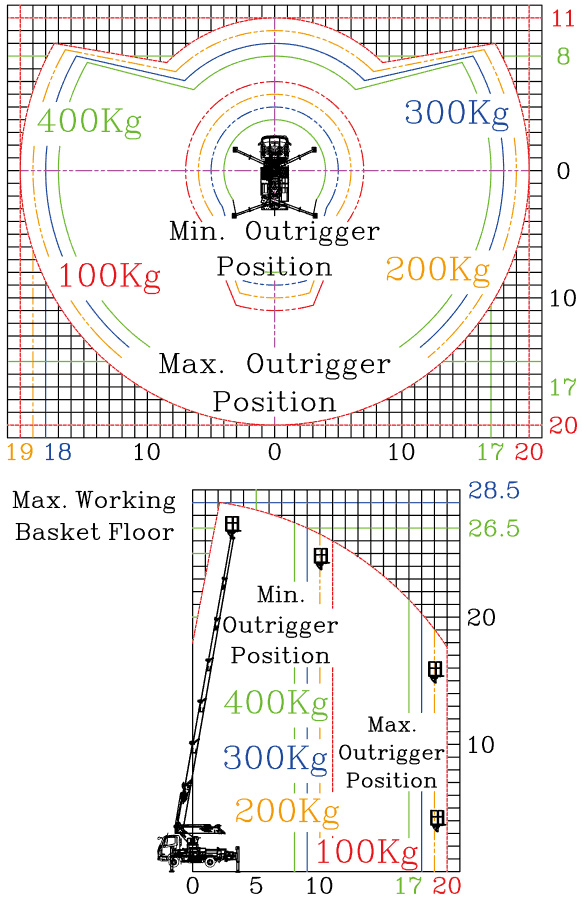

Work Area Diagram

Specfication

Contents Unit Data Remarks
Permissible Mounting Vehicle Ton Min. 10 GVW 4x2
Max. Working Load Payload kg 400 (OPTIONAL 300Kgs
Crane Winch)		 Including 3 persons
Product’s Dimension
(with Vehicle)		 Length mm 6,030 Transport dimension
Height mm 3,250
Width mm 2,200
Working Area Max. Height m 28.5 Operator height
Max. Outreach m/kg Rear : 17 - 400 / 20 - 100
Left/Right : 17 - 400 / 20 - 100
Front : 8 - 400 / 11 - 100		 Outrigger Max. extended
Work Platform Dimension mm 1,830 * 500 *1,100 Basic
3,230 * 1,030 *1,100 Extended
Rotation Angle deg. 360deg. Continuous ±720
Boom Type HexaDecagon 16 edges
Number of Booms 7 Telescopic
Extension Hydraulic Cylinders, Chain Single stage
Turntable Rotation Type Slewing Bearing with Hydraulic Reduction Gears Minimal backlash
Rotation Angle deg. 350 ( ±175 ) Auto Cut-off
Hydraulic Pump Drive Type Engine P.T.O Electric type

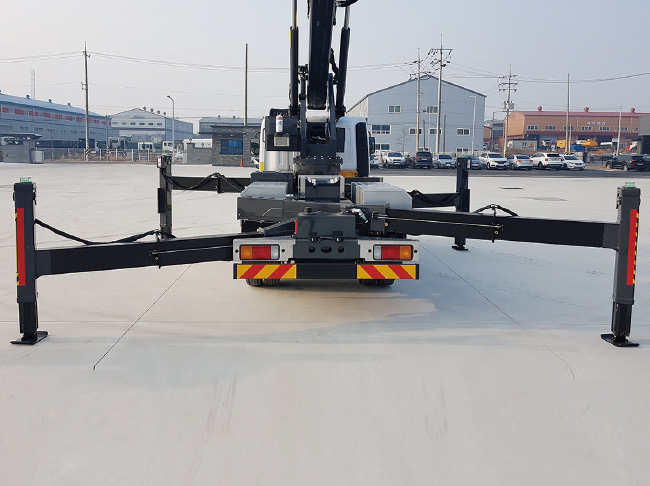

Outrigger Width mm Front : 5,980 ; Rear : 6,070 Different positioning
Extension Hydraulic Cylinders, Wires
Type X-A Patented
Operations and Controls Type Hydraulic Lever All controls
Remote control Portable Radio Wireless Upper controls only

The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
