| Contents | Unit | Specifications | Remarks | |
|---|---|---|---|---|
| Permissible Mounting Vehicle | Ton | Min. 32 GVW | Machine 20Tons | |
| Max. Working Load | Payload | kg | 400 | Included 3 persons |
| Product’s Dimension (with Vehicle) |
Length | mm | 13,650 | Transport dimension |
| Height | mm | 3,950 | ||
| Width | mm | 2,490 | ||

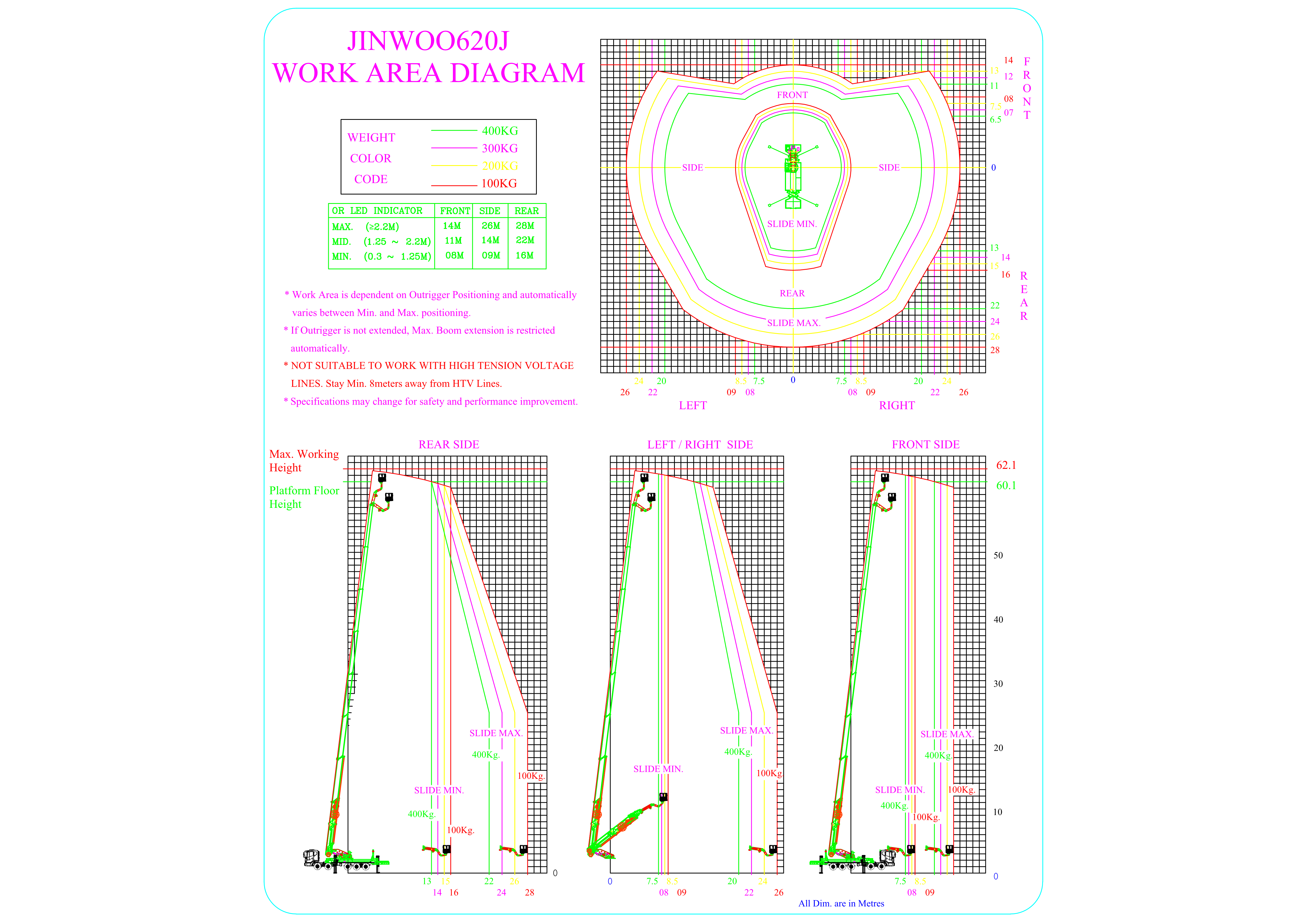

| Working Area | Max. Height | m | 62.1 | |
| Max. Outreach | m/kg |
Rear : 22 - 400 / 28 - 100 Left/Right : 20 - 400 / 26 - 100 Front : 7 - 400 / 14 - 100 |
Outrigger Max. extended |
|
| Work Platform | Dimension L x W x H |
mm | 1,830 * 500 *1,100 | Basic |
| 3,230 * 1,030 *1,100 | Extended | |||
| Rotation Angle | deg. | 360 continuous | Max. ±720 | |
| Boom | Type | Telescopic Octagonal, Articulating/Jib-Boom Rectangle |
||
| Number of Booms | Telescopic 8, Articulating/Jib-Boom 1 |
|||
| Extension | Hydraulic Cylinders, Chain | Dual stage | ||
| Turntable Rotation | Type | Slewing Bearing with Hydraulic Reduction Gears |
Minimal backlash | |
| Rotation Angle | deg. | 350 ( ±175 ) | Auto Cut-off | |
| Hydraulic Pump Drive Type | Engine | P.T.O | Electric type | |
| Outrigger | Width | mm | Front/Rear : 9,600 ; Left/Right : 8,050 |
Program based Multiple positioning |
| Extension | Hydraulic Cylinders, wires |
|||
| Type | X - A | Patented | ||
| Operations and Controls |
Type | Hydraulic Levers | All controls | |
| Remote control | Portable Radio Wireless | Upper controls only | ||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
