| Contents | Unit | Data | Remarks | |
|---|---|---|---|---|
| Mounting Truck | Ton | 16.5 GVW | ultra-long | |
| Max. Working Load | Payload | kg | 450 | Including 2 persons |
| Product’s Dimension (with Vehicle) |
Length | mm | 10,180 | |
| Height | mm | 3,980 | ||
| Width | mm | 2,495 | ||

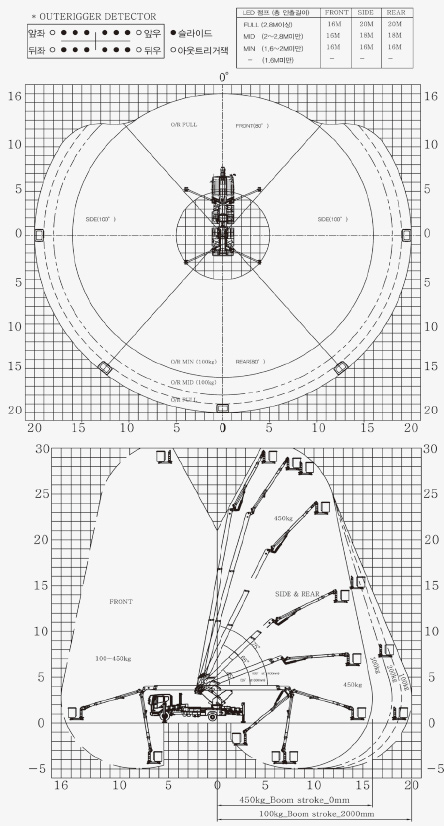

| Working Area | Max. Height | m | 30 | |
| Max. Outreach | m/kg | Rear/Side : 16/450, 20/100 Front : 16/450, 16/100 |
||
| Platform | Dimension | mm | 1,390*960*1,100 | Basic |
| Rotation Angle | deg. | 360 | continuous | |
| Boom | Type | Rectangle | ||
| Number of Booms | Three interlocked, one articulating | Last Insulated | ||

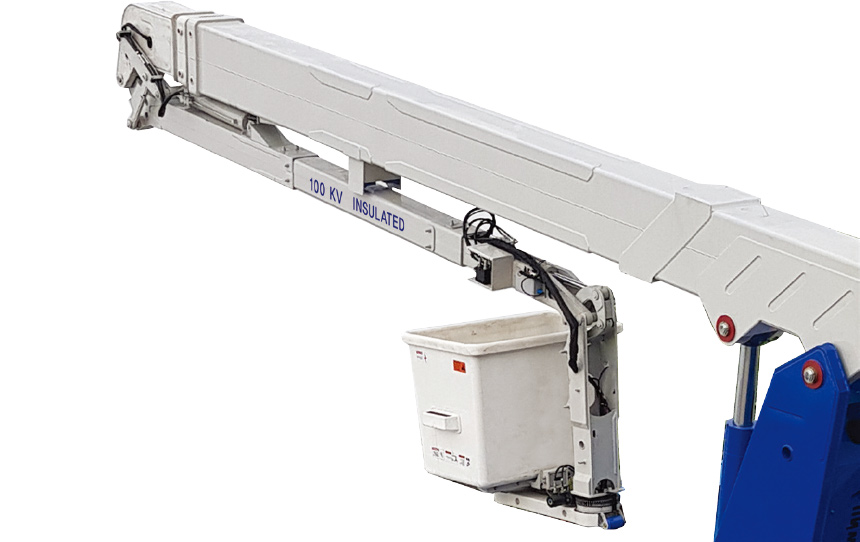

| Insulation | Volts | 100,000 | Live Working | |
| Extension | By hydraulic Cylinder & Chain | |||
| Turntable Rotation | Type | deg. | By Hydraulic reduction gear | |
| Rotation Angle | 350 | Limited | ||
| Hydraulic Pump Drive Type | Engine | mm | P.T.O | |
| Outrigger | Width | 5,940 Front 5,960 Rear |
||
| Extension | By hydraulic Cylinder & Wire | |||
| Type | X - A | Patented | ||
| Valve control | Type | By lever | ||
| Remote control | Wireless | |||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
