Aerial Elevating Work Platform
JINWOO 400S
List
Product
category
Aerial Elevating Work Platform

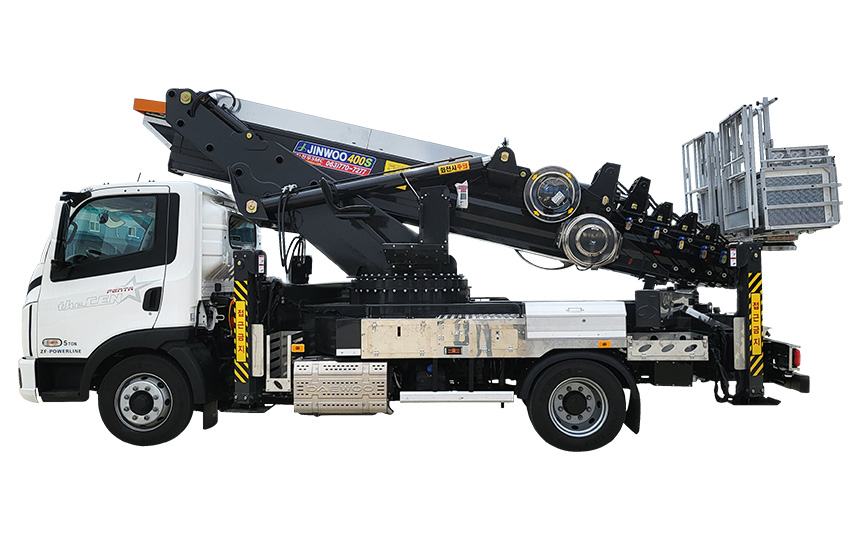

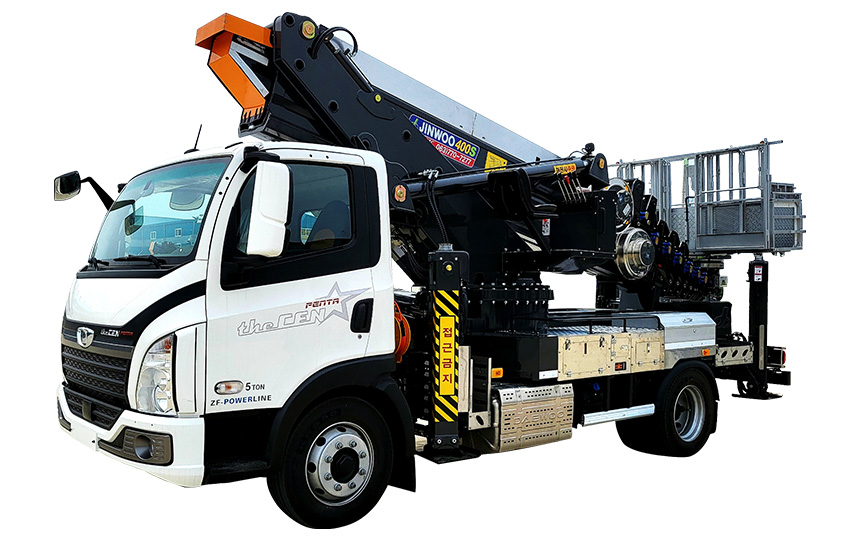

JINWOO 400S

Optimized for the composite & narrow working environment by the strong power compared with product’s size.
  • Attached with 8 step auto-transmission of ZF power line.
  • Attached with power engine of which horse power is 206 and of EURO 6-D.

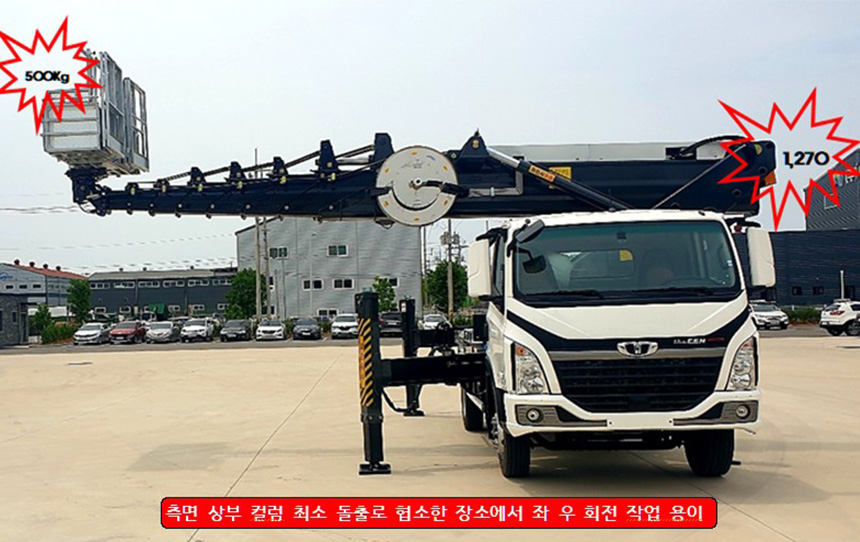

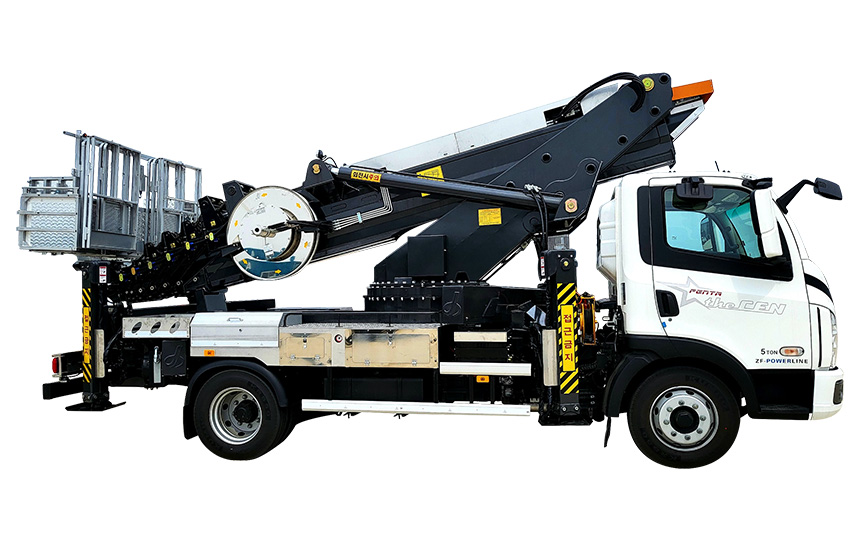

  • Easy working in the narrow area because of mini. extruding (1,270mm) in the side of super-structure column.

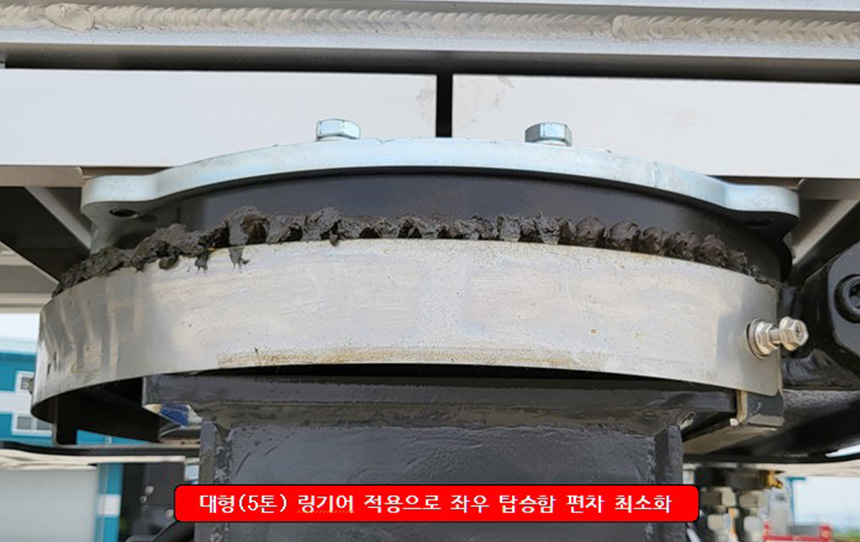

  • Attached large ring gear in platform for minimizing deviation between left & right.

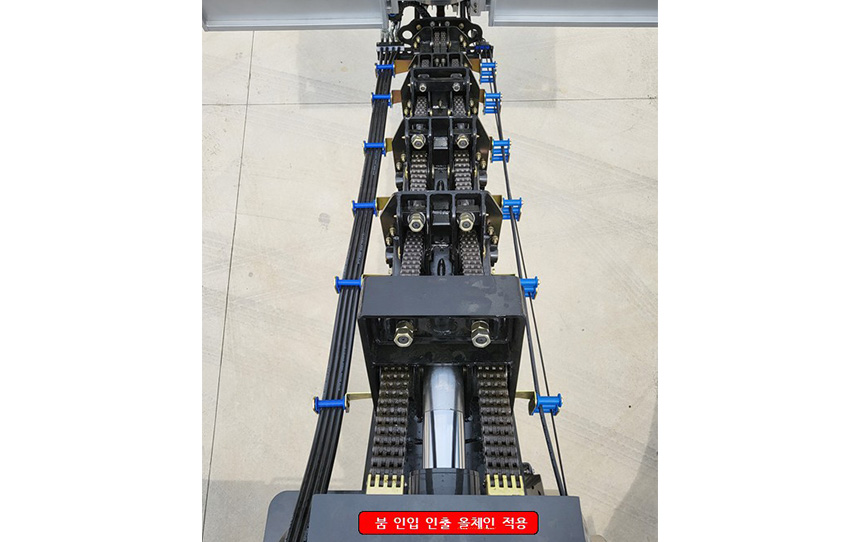

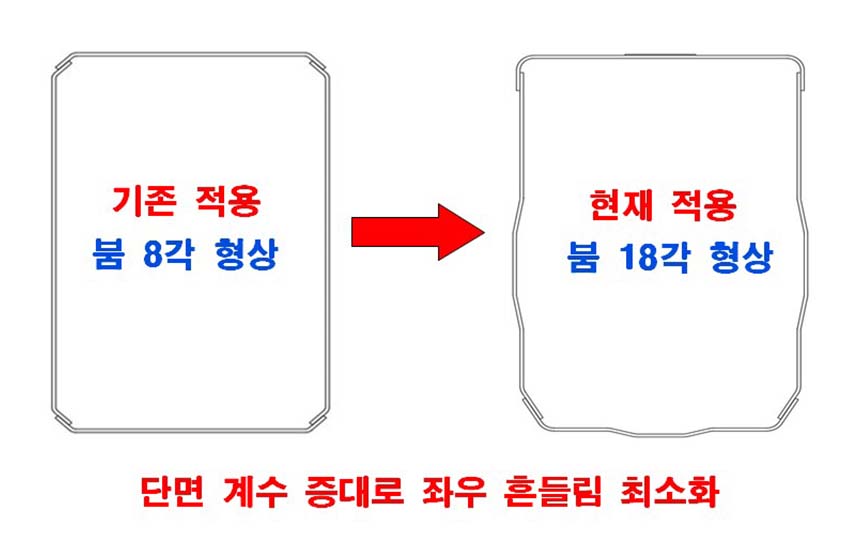

  • Applied all chain for boom’s retraction & extension. Boom type is of 18 edges and 8 booms are interlocked.

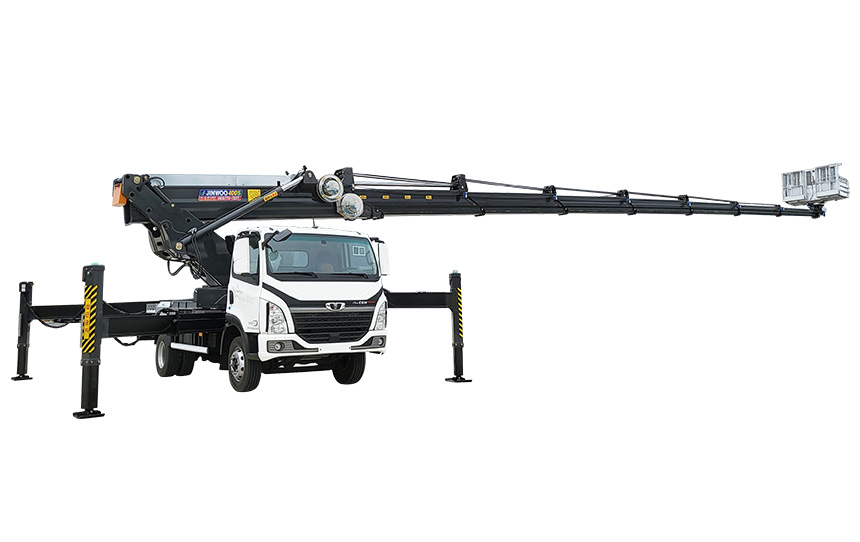

  • Applied X-A type outrigger (patent) for the sufficient work area.

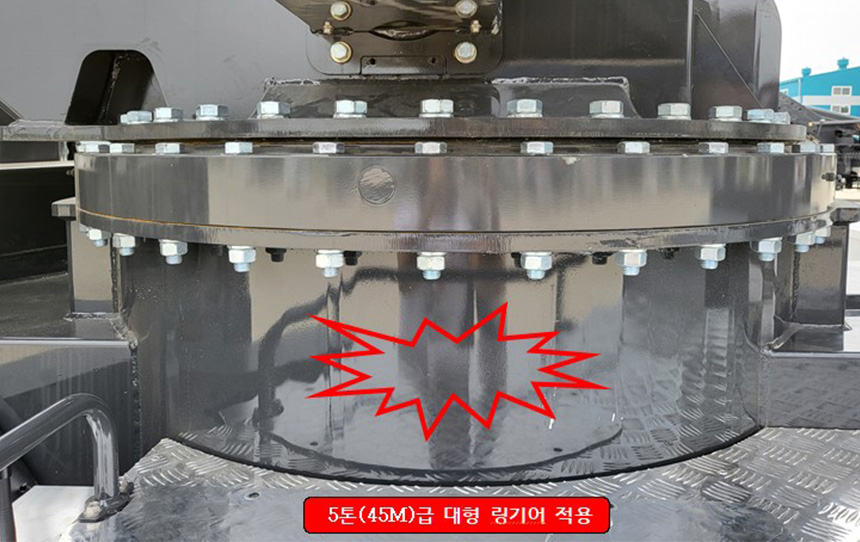

  • Attached large ring gear in turn table for maximizing safety of super-structure.
  • Attached invertor & supplementary battery under sub-frame for acquiring max. storage space.

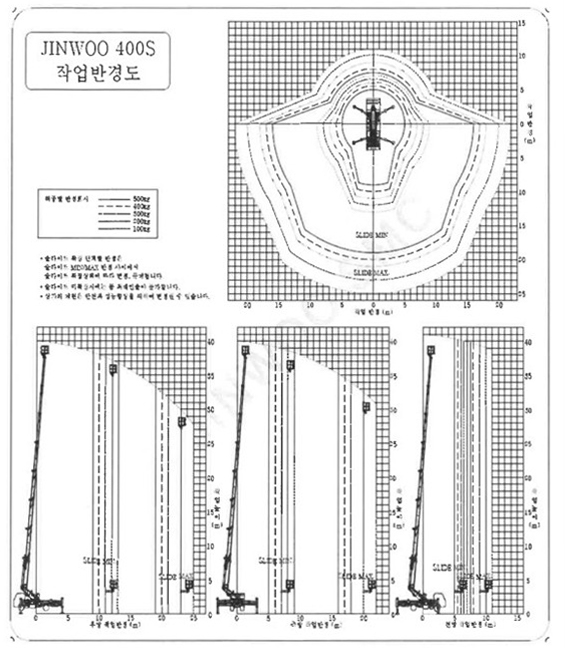

Work Area Diagram

Specfication

Contents Unit Data Remarks
Mounting Truck TON The CEN Penta
(FE58J2C, EURO6)		 DEAWOO 5Ton
Max. Working Load Freight / Loading Kg 500 Including 2 persons
Product
(Truck included)		 overall Length mm 7,475
overall Height mm 3,400
overall Width mm 2,205

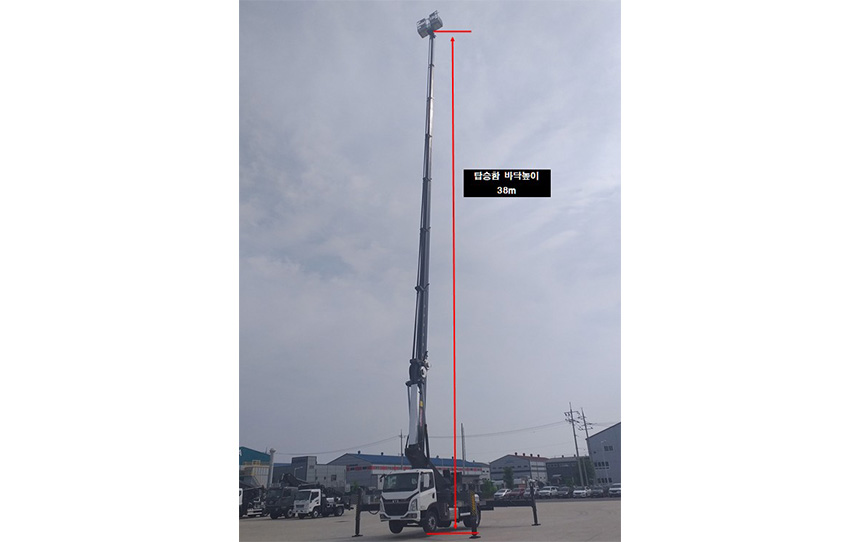

Working Range Max. Height m 40
Max. Outreach m/kg 19/500 ~ 25/100
Platform Max. Extension mm 500 * 1,830 * 1,100 Basic
1,030 * 3,230 * 1,100 Extension
Rotation Angle deg. ±720
Boom Type - 18 edges Boom
Number of Booms - 8 Interlock
Extension - By hydraulic Cylinder, Chains
Turntable Rotation Type - By hydraulic reduction gear
Rotation Angle deg. ±175
Hydraulic Pump
Drive Type		 Engine - P.T.O
Outrigger Width mm Front/Rear : 6,950
Left/Right : F-6,525 R-6,525
Extension - By hydraulic Cylinder, Wires
Type - XㅡA Type
Valve control Type - By Lever
Remote control - Wireless

※ Jinwoo SMC reserves the right to change specifications without prior notice.
